Product Introduction

➢ BLE version BLE4.2

➢ Modulation method GFSK

➢ Frequency range 2402 ~ 2480MHZ (2.4G ism frequency band)

➢ Transmit power range -21 ~ + 5dBm typical

➢ Operating temperature range -40 ℃ ~ + 85 ℃ ➢ Relative humidity range 0% ~ 100%

➢ Temperature accuracy ± 0.2 ℃ (typical value) ➢ Humidity accuracy ± 2%

➢ Average working current <20uA

➢ Battery model CR2032

➢ Air upgrade support

➢ Matching method PCBA solution customization / finished product



Product Features

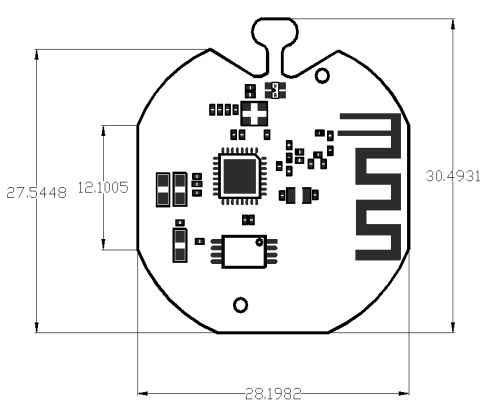

Product parameters

Bluetooth temperature and humidity sensor is a smart home product designed by Shengrun Technology, which is mainly used for real-time detection and recording Environmental temperature and humidity, display current and historical data through the Magic Wisdom APP, and control other devices through network linkage Prepare.






Introduction



Normally monitor the temperature and humidity data (5s / time) regularly, Bluetooth radio data (5s / time) regularly, the blue indicator light flashes slowly (10s / time), you can view the recorded temperature and humidity changes through the gateway.

When the temperature or humidity exceeds the set value, the red light flashes quickly (1s / time).

Press and hold the button for 2 seconds to enter the state of fast Bluetooth broadcasting, at this time you can connect, update the configuration or OAD upgrade.




Order Method
Data download
title version release date download
