Product Model：HY-40R204

Modulation Mode：GFSK

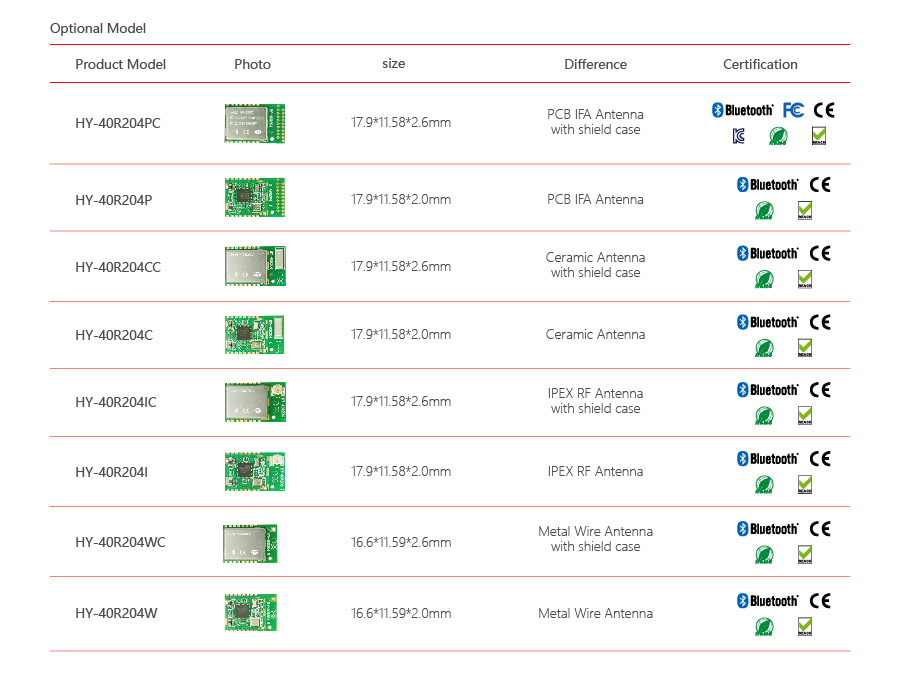

Antenna Type： PCB antennas, ceramic antennas, IPEX, wire antennas

Bluetooth BLE 5.0 single mode compliant

Transmission Distance：80M（The actual distance is subject to the test environment）

Integrated Bluetooth low energy stack

GAP, GATT, L2CAP, SMP Bluetooth low energy profiles

Compliance: BQB BLE5.0, FCC, IC(Canada), CE ETSI RED…etc. worldwide RF Regulations.

Transmit power :-21dBm~+5dBm typical

Receiver sensitivity: -97dBm typical

In-System-Programmable Flash 128KB SRAM 8KB

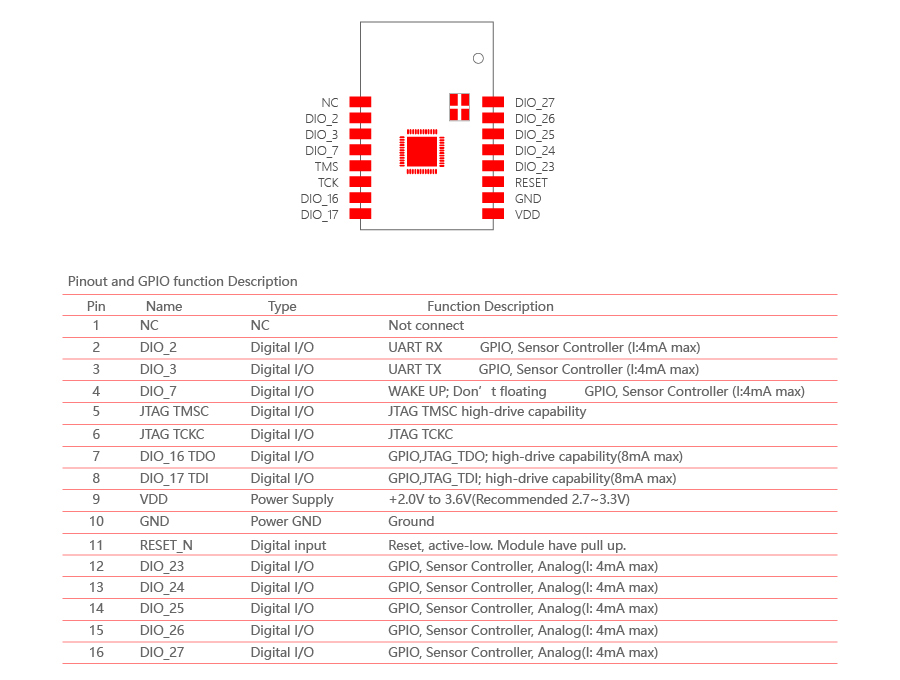

10 programmable GPIO

Programmable ARM Cortex-M3 processor for embedding full applications

Low current consumption :Shutdown. No clocks running, no retention: 150nA(Typical)

Description

       HY-40R204 integrates all features required for a Bluetooth Low power aplication ，which is a highly integrated Bluetooth 5.0 module targeted for low power Smart Devices and loT applications. HY-40R204 also provides 10 programmable GPIO for low power product applications and provides selection of PCB antennas, ceramic antennas, IPEX, wire antennas.

       HY-40R204 offers all Bluetooth low energy features: radio, stack, profiles and application space for customer applications. The module also provides flexible hardware interfaces to connect sensors.

       HY-40R204 can be powered directly with a standard 3V coin cell batteries or pair of AAA batteries.

in lowest power shutdown mode it consumes only 0.15uA and will wake up in few microseconds.

       HY-40R204 transmission distance of 100meter or more. (At face to face, free space, 1.2 Meter high from Ground for testing).

       Bluetooth IC：TTC2640R2 4*4*0.9mm 32pin IC,Used TI CC2640R2 die chip

Radio performance & current consumption

(Test condition:With Ta = 25 ℃, VDD =3.0V, with internal DC-DC converter, standardmeasure:1Mbps GFSKmodulation ,FRF = 2440MHz Bluetooth Low energy mode.)

Modulation Mode: GFSK

Frequency range: 2402~2480MHZ (2.4GHz ISM band)

Transmit power setting Range: -21 ~ +5 dBm typical ( IC differential mode point characteristics; programmable by software) .

The antenna feed point transmit power : +2 dBm typ. (TX set Max.output characteristics)

Receiver sensitivity: -97dBm typical( IC differential mode point characteristics)

The antenna feed point receiver sensitivity : -93 dBm typical. ( PER<30.8%)

Frequency drift specification :RF ± 60ppm , MCU clock 32.768KHz ± 350ppm.( Use X-Tal)

Pre-certified RF regurations for BQB BLE 4.2/5.0, CE ETSI RED, FCC, IC(Canada), (FCC and IC only for HY-40R204PC PCB antenna with shield case model);

Another can Compliance for worldwide RF Regulations.

Ultra low current consumption

Transmit：6.1mA(typical)（O/P Power setting :0dBm）

Transmit：9.1mA(typical)（O/P Power setting :5dBm）

Receive(high gain setting): 6.1 mA(typical)

Idle. Supply Systems and RAM powered:550uA(Typical)

Standby. With Cache, RTC, CPU, RAM and partial register retention. XOSC_LF: 3.0 uA(Typical)

Shutdown. No clocks running, no retention: 150 nA(Typical)
