Product Model：HY-234001P/HY-234001PC (with shield case)

Modulation Mode：GFSK

Antenna Type： PCB antennas

Bluetooth BLE 5.3 single mode compliant

Transmission Distance：80M（The actual distance is subject to the test environment）

Integrated Bluetooth low energy stack

GAP, GATT, L2CAP, SMP Bluetooth low energy profiles

Compliance: BQB BLE5.3, FCC, IC(Canada), CE ETSI RED…etc. worldwide RF Regulations.

Transmit power :-21dBm~+8dBm typical

Receiver sensitivity: -96dBm typical

In-System-Programmable Flash 512KB SRAM 36KB

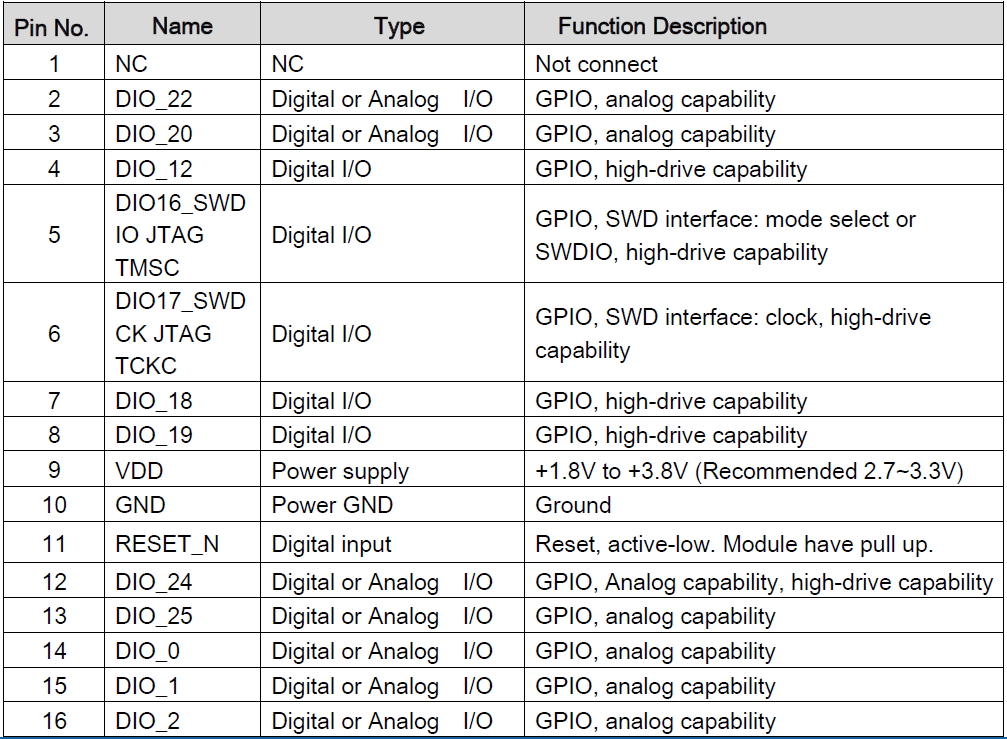

10 programmable GPIO

Powerful ARM® Cortex®-M0+ processor for embedding full applications

Low current consumption :Shutdown. No clocks running, no retention: 150nA(Typical)

       HY-234001P integrates all features required for a Bluetooth Low power aplication ，which is a highly integrated Bluetooth 5.3 module targeted for low power Smart Devices and loT applications. HY-234001P also provides 10 programmable GPIO for low power product applications and provides selection of PCB antennas.

       HY-234001P offers all Bluetooth low energy features: radio, stack, profiles and application space for customer applications. The module also provides flexible hardware interfaces to connect sensors.

       HY-234001P can be powered directly with a standard 3V coin cell batteries or pair of AAA batteries.

in lowest power shutdown mode it consumes only 0.15uA and will wake up in few microseconds.

       HY-234001P transmission distance of 80meter or more. (At face to face, free space, 1.2 Meter high from Ground for testing).

       Bluetooth IC：TI CC2340R5 5*5 40pin IC

Radio performance & current consumption

(Test condition:With Ta = 25 ℃, VDD =3.0V, with internal DC-DC converter, standardmeasure:1Mbps GFSKmodulation ,FRF = 2440MHz Bluetooth Low energy mode.)

Modulation Mode: GFSK

Frequency range: 2402~2480MHZ (2.4GHz ISM band)

Transmit power setting Range: -21 ~ +8 dBm typical ( IC differential mode point characteristics; programmable by software) .

Receiver sensitivity: -96dBm typical( IC differential mode point characteristics)

Pre-certified RF regurations for BQB BLE 5.0, CE ETSI RED, FCC, IC(Canada), (FCC and IC only for HY-40R204PC PCB antenna with shield case model);

Another can Compliance for worldwide RF Regulations.

Ultra low current consumption

Transmit：5.0mA(typical)（O/P Power setting :0dBm）

Transmit：<12.0mA(typical)（O/P Power setting :+8dBm）

Receive(high gain setting): 5.3 mA(typical)

700 nA standby mode, RTC, 36 KB RAM

56 μA/MHz running CoreMark®

150 nA shutdown mode, wake-up on pin
